Ready-to-install drylin® SLW-XY tables

Cross table with travel comparison for 100 x 100 to 500 x 500 mm.

Fast delivery, cost-effective and customised
Linear modules can be used to precisely adjust a position on a work surface. This is now even easier with drylin® SLW-XY. igus has developed ready-to-install XY tables that are suitable for the desired work surface.

Only one unit for two adjustment directions
For a work surface of up to 500mm x 500mm
Identical stroke lengths or customised configuration
Delivery includes accessories

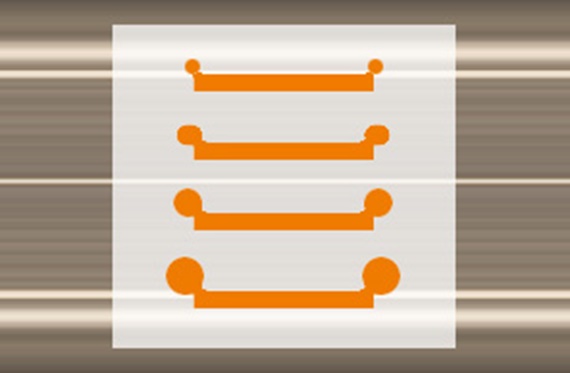

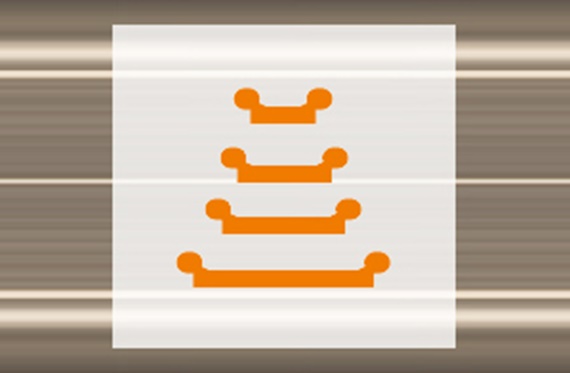

The SLW-XY XY tables are available in four installation sizes. Components from the drylin® W linear modular system are used as linear guides.

Request here

Product services

Download technical data

Free catalogue extract with all technical data for this product range.

Download catalogue extract now

Request a quotation

Are you interested in a personalised offer? Then leave us a message!

Send an enquiry now

The installation sizes of the SLW-XY tables

igus cross table with linear axes and screw drives.

SLW-XY-0620

Max. stroke length: 150mm
Clearance-free and anti-reflex versions also available

SLW-XY-0620 in the online shop

SLW-XY-0630

Max. stroke length: 150mm
Carriage length: 54mm

Cross table with linear guide and manual adjusters for precise positioning.

SLW-XY-0660

Max. stroke length: 300mm
Carriage length: 84mm

Cross table with two linear axes for movable positioning.

SLW-BB-XY-1030

Max. stroke length: 200mm
Carriage length: 48mm

Cross table with two adjustment units for linear positioning.

SLW-XY-ESJ-1040

Max. stroke length: 300mm
Carriage length: 73mm

Information on the SLW-XY stainless-steel XY table

drylin SLW-XY-1040-HR linear table with two travel axes.

SLW-XY-1040/-PL

Max. stroke length: 300mm
Carriage length: 73mm
PL= preload version available as an option

Cross slide table with spindle and linear carriage on one axis.

SLW-XY-1080/-PL

Max. stroke length: 300mm
Carriage length: 107mm
PL= preload version available as an option

Spindle lift table as a linear module with a linear axis for precise height adjustment.

SLW-XY-10120

Max. stroke length: 500mm
Robust, wide load-bearing surface

SLW-XY-10120 in the online shop

Cross table with linear axis for precise positioning in an XY system.

SLW-XY-2080

Max. stroke length: 500mm
Carriage length: 134mm
Preload version available as an option

Technical drawing

Dimensioned drawing of a Zg_ cross table with left and right views and a rotation detail.

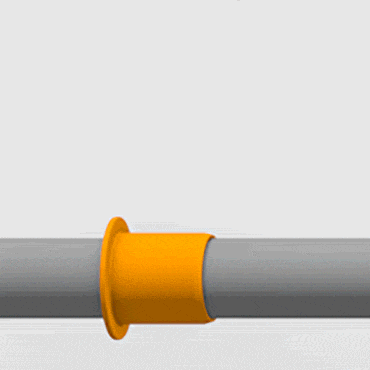

Lubrication-free

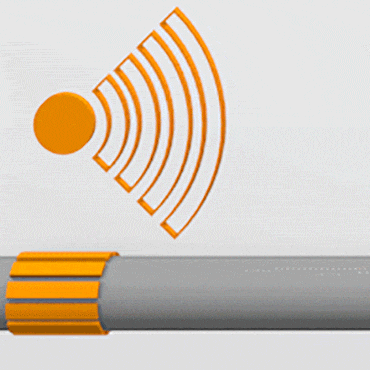

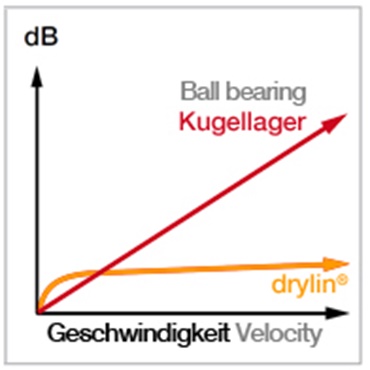

Quiet operation

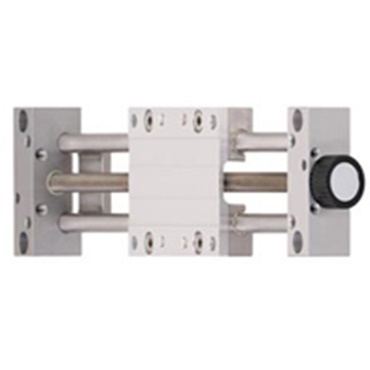

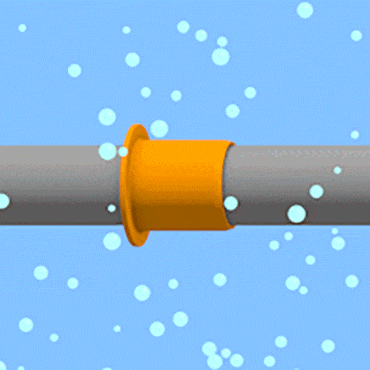

Corrosion-resistant

Format adjustment

Temperature-resistant up to +150°C

Cost-effective

Bearing materials

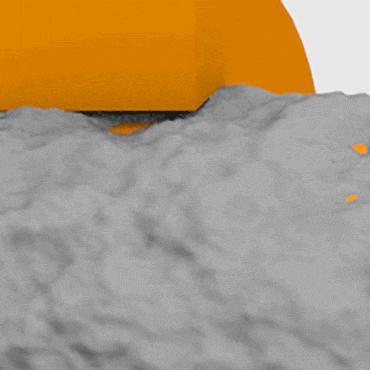

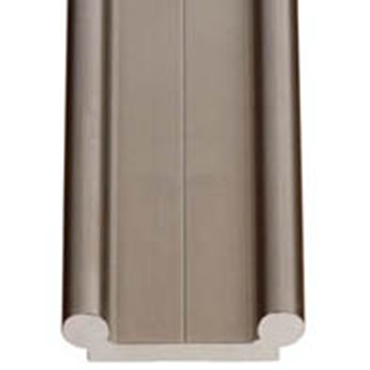

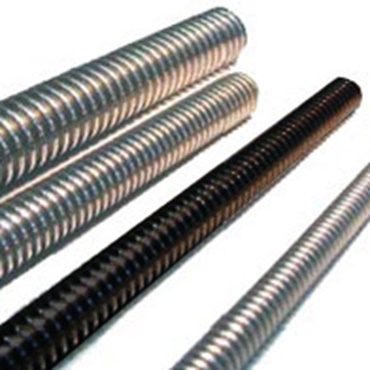

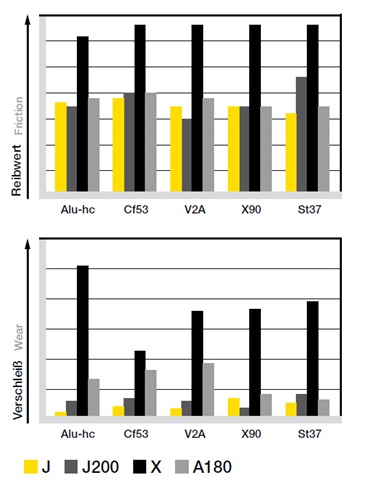

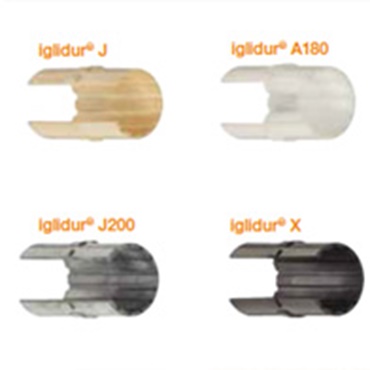

All bearing points on drylin® drive units are equipped with lubrication-free and maintenance-free igus® high-performance polymers. Options include materials for applications subjected to high temperatures of up to +180°C (iglidur® X, SHT-ES series) and for FDA-compliant environments (iglidur® A180).

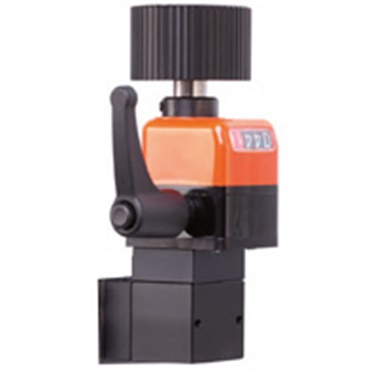

Lead screw clamp

In a wide range of applications, a clamping option is also required as an additional safeguard against unintentional misadjustment.

Shaft clamping flange is attached to the position indicator for clamping of the lead screw
Prevents the lead screw from accidental rotation
Material: plastic housing with aluminium shaft clamp
Colour: black

To the lead screw clamps

Digital position indicator

The electronic position indicator (battery operated) for drylin® linear modules can be flexibly programmed for the individual thread pitch. Ideal for use with dryspin® high helix threads. LCD display with five digits and special characters, long battery life and easy battery change without disassembling the device.

Digital position indicator

Drylin position indicator with digital display and rotary knob.

drylin hand wheels

We have an extensive range of hand wheels available from stock for a wide range of requirements. From small compact sizes up to Ø 125 with/without handles in various designs.

drylin® SHT - hand wheel
