drylin® Q square linear guides

The drylin® Q square guides ensure a linear, torque-resistant movement and are ideally suited for the unsupported application. Thanks to the hollow profile, feed-through of cables is possible. The user can choose between three installation sizes or three profile sizes and benefits from the five longitudinal grooves on the carriage for flexible attachment of components. A manual clamp is available as an option for the square guides. The drylin® Q carriages can also be used on identically dimensioned, standard machine construction profiles.


Products

Number of products: 17

drylin® Q pillow block
  • Closed anodised aluminium housing
  • Torque absorption of up to 5 Nm
  • Torque-resistant sliding element made of iglidur® J
  • Material sliding element: iglidur® J

from 61.20 USD/Pc.


Delivery time on request
To the product page
drylin® Q linear plain bearing with round flange
  • Enclosed anodised aluminium housing
  • Maximum moments up to 5 Nm
  • Torque-resistant sliding elements made from iglidur® J
  • Material sliding element: iglidur® J

from 49.64 USD/Pc.


Delivery time on request
To the product page
drylin® Q adapter kit for grippers/sensors
  • Adapter kit for grippers/sensors

from 25.00 USD/Pc.


Delivery time on request
To the product page
drylin® Q adjustable linear carriage, manual clamping
  • Adjustable bearing clearance with manual clamp
  • Material sliding element iglidur® J
  • Material sliding element: iglidur® J

from 62.00 USD/Pc.


Delivery time on request
To the product page

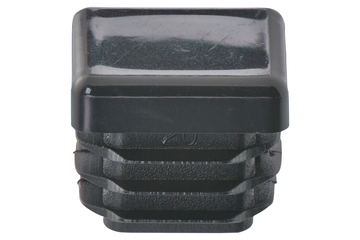

drylin® Q end cap
  • Endcaps for square section rails
  • Material: plastics

from 0.81 USD/Pc.


Delivery time on request
To the product page
drylin® Q pillow block, tandem
  • Enclosed anodised aluminium housing
  • Maximum moments up to 10 Nm
  • Torque-resistant sliding elements made from iglidur® J
  • Material sliding element: iglidur® J

from 89.60 USD/Pc.


Delivery time on request
To the product page
drylin® Q chain connection for e-chain® E2 micro
  • Chain connection for e-chain® E2 micro

from 12.36 USD/Pc.


Delivery time on request
To the product page
drylin® Q shaft end support
  • Supports made from plastic
  • Material: plastics

from 12.31 USD/Pc.


Delivery time on request
To the product page
drylin® Q linear plain bearing
  • Apply moments up to 3 Nm
  • Torque-resistant sliding elements made from iglidur® J
  • Material: iglidur® J

from 26.99 USD/Pc.


Delivery time on request
To the product page
drylin® Q ASDJ
  • Clearance-reduced guidance of the lifting columns by adjustment mechanism
  • Low-cost due to injection moulding
  • Lightweight solid polymer solution
  • Lubrication-free, wear-resistant, maintenance-free due to dry-tech® polymer iglidur® J
  • Corrosion-resistant
  • Material: plastics

from 9.33 USD/Pc.


Delivery time on request
To the product page
drylin® Q square profile
  • Aluminium, hard-anodised, suitable for unsupported applications, robust, corrosion-resistant, light
  • Material: Aluminum, hard anodized

from 33.36 USD/m

3 items, thereof ready for shipping from Germany:
1 ready for shipping in 5 working days
To the product page
drylin® Q linear plain bearing with angular flange
  • Enclosed anodised aluminium housing
  • Maximum moments up to 5 Nm
  • Torque-resistant sliding elements made from iglidur® J
  • Material sliding element: iglidur® J

from 45.36 USD/Pc.


Delivery time on request
To the product page
drylin® Q linear plain bearing with round flange, tandem
  • Enclosed anodised aluminium housing
  • Maximum moments up to 10 Nm
  • Torque-resistant sliding elements made from iglidur® J
  • Material sliding element: iglidur® J

from 52.90 USD/Pc.


Delivery time on request
To the product page
drylin® Q linear plain bearing with angular flange, tandem
  • Enclosed anodised aluminium housing
  • Maximum moments up to 3 Nm (size 10) and up to 10 Nm (size 20)
  • Torque-resistant sliding elements made from iglidur® J
  • Material sliding element: iglidur® J

from 50.37 USD/Pc.


Delivery time on request
To the product page
