Tech up & cost down
motion plastics for
sewage plants

Longer service life, lower costs, more safety

Sewage plants must clean sewage reliably and hence work safely and without failure. Under continuous stress such as sun, wind, snow and ice. igus products are tested in our own laboratory with regard to their service life and are being used in hundreds of applications.  This way, downtime is avoided, operating costs are reduced and time-consuming maintenance is decreased. Whether in a longitudinal scraper, sand or fat trap: igus offers cost-effective energy chains, cables and guide troughs specifically for sewage treatment, individually or as a ready-to-use complete system from stock. At igus, you can find tailored solutions for small sewage plants up to a large wastewater treatment plant.

New from April 2020



Five highlights in a three-minute video

Innovations for the sewage industry

Tech up, cost down - with even more durable energy chains, a compact sensor system for monitoring the service life of e-chains and a 36-month guarantee for complete basic flizz systems.

You can find more information on these and further product innovations at our 400m2 trade show stand. You can either explore it virtually on your own or together with our industry expert. Make an appointment now for a guided virtual tour with individual consultation:


Book a digital tour now

E2.1 e-chain
The new standard for medium loads

▲ Tech up

20% to 30% larger sliding surfaces for longer service life in gliding operation compared to previous E2/000 series

▼ Cost down

Simplified installation of the interior separation system

36-month guarantee




Find out more about the E2.1 e-chain series

isense EC.W.06 service life monitoring
Service life monitoring for e-chains

▲ Tech up

Integrated offline service life monitoring for unsupported and roller chain applications

New sensors allow measurement of percentage pin/bore connection abrasion levels

▼ Cost down

Cost reduction through clear measurement of the service life of the product - avoidance of an early replacement of the e-chain system


More information about isense EC. I. SU.02

e-spool flex
Cable reel without slip ring

▲ Tech up

Uninterrupted guide of power, data, liquids or air

Constant tensile strain on the cable

▼ Cost down

Cost-effective in case of repair, as individual components can be replaced




Find out more about e-spool flex

Your savings potential with igus energy chain systems and cables


  • No regular replacement of cables required
  • No separate drive for the motor cable drum – this saves material and energy
  • No slip ring body and regular exchange of contacts
  • No tangling or damage of cables
  • Cable lengths up to 50 % shorter than festoons


Submit project enquiry now!



Cost-effective igus® polymer products for sewage plants

e-chain® series 2500
e-chains® series 2500

e-chain® for long travels

Large unsupported lengths possible

Safe cable guidance increases cable service life

Fast opening and closing

Easy assembly of the energy chain

chainflex® CF9.25.12
chainflex® CF9.25.12
(12G 2.5mm²)

For heaviest duty applications

Low-temperature-flexible

Hydrolysis- and microbe-resistant

Free of halogen and PVC

Silicone-free

UV-resistant

basic flizz®
basic flizz® 2500v2

  • Configure online
  • Weather-resistant enclosure
  • Energy chain for reliable cable guidance
  • Easy installation
  • Travel distance up to 200 m and more
  • Telescoping moving end arm
  • Standardised and including moving end arm deliverable from stock

Energy chain configurator

Energy chain configurator

Configure complete energy supply systems for short or long travels as well as for hanging applications. Enter the application and environmental parameters of your application and the energy chain configurator "e-chain expert" will suggest suitable solutions for your energy supply.

Checked in the igus® test laboratory for real use

Glimpse into test laboratory for cables and energy chainsTake a look at our chainflex® and e-chain® test laboratory, where tests are run with 10 billion cycles every year.



Tests in the cold chamberBoth energy chains and chainflex® cables are tested here under extreme conditions. That way, they can meet even the most demanding requirements when the time comes.



Application examples of our customers

Sewage treatment without downtime in the sewage plant Plauen

The Basic flizz® System guides cables safely along the primary clarifier on 53 metres. The energy chain in the housing is suitable for long travels and ensures a long service life of the cables. They are guided with a defined bend radius and the energy chain absorbs developing tensile forces. That way, cable-related downtimes are avoided.

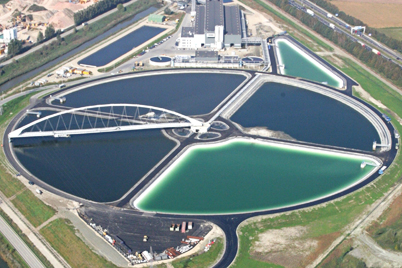

Light energy chain for large project: AMORAS

AMORAS is a sludge drainage plant according to newest ecological findings. Pumps are guided through the basin of the sludge treatment plant via a bridge. Through an igus energy chain the hoses of the pumps are moved on the bridge, so that the pumps can reach every area of the four basins measuring 120,000m3 each. To realise the project, the operator worked closely with igus from the planning to realisation.

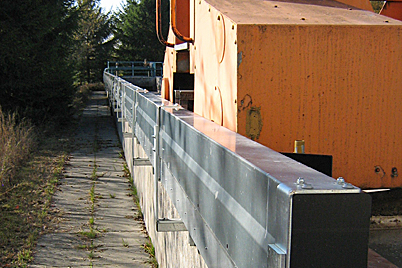

Long scrapers basin with more process reliability

The Wastewater Association Kempten has equipped the long scrapers basin of its sewage plant with a basic flizz® system with floating moving ends, so as to guide electric cables safely. The system guides the maintenance effort and at the same time ensures a long service life of the cables. On a travel measuring 65 metres, the energy chain contained in the system guides the cables.

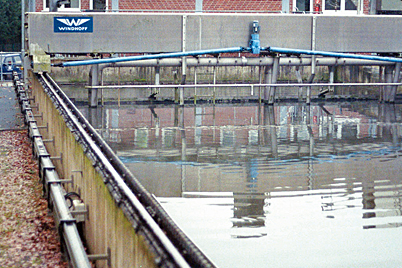

Smooth cable guidance since 2000 at the Aggerverband

Before the flizz® was applied, a cable drum was used for the energy supply. However, the cable drum caused high wear of the cables. Since chainflex® cables and the flizz® system with igus® energy chain are being used, the plant operates without downtime. Even at particularly low or high temperatures.
