Motorna kontrola

Igus D1 i D2 sistem kontrole motora može se koristiti za bilo koji tip motora. Sa izuzetkom Igus D3 sistema kontrole motorom, svi se mogu koristiti na 48V. Igus D3 sistem kontrole motorom radi na 24V. Sistemi za upravljanje motorima D3, D7, D8 i D9 namenjeni su za jednostavnu automatizaciju direktno na sistemu kontrole i stoga ne zahtevaju nikakav softver i/ili PC. Igus D1 i D2 sistemi kontrole motora takođe ne zahtevaju dodatnu instalaciju softvera, već se programiraju na osnovu web pretraživača. Na taj način, podešavanja se mogu parametrisati na PC-u, ali i na tabletu i pametnom telefonu. Za ovo nije potrebno poznavanje programiranja. Sve izlazne faze mogu takođe raditi kao robovi, čineći ih višenamenskim.

Number of products: 9

drylin® D7- (X) stepper motor output stage

  • Suitable for 28 - 42mm motor flange size (NEMA11-17)
  • Up to 3A peak current
  • 5-24V control & 24-48V load voltage
  • Operation mode 1: clock/direction
  • Operation mode 2: D7 & D7-1: jog mode; D7-2& D7-3: loop mode
  • Quiet operation & automatic tuning
11,385.97 RSD/Pc.
4 артикла, од којих је спремно за слање из Немачке:
4 u roku od 24-48 sati
To the product page

drylin® D8- (X) stepper motor output stage

Product information
  • Without connecting cable
  • Set consists of 3x drylin® D8

  • Can control stepper motors with a continuous current of up to 4A with a supply voltage of up to 48V
  • Ready to use immediately
  • Easy control
  • Exact positioning
13,968.80 RSD/Pc.
4 артикла, од којих је спремно за слање из Немачке:
4 u roku od 24-48 sati
To the product page

drylin® D2 motor control system for stepper, DC and EC/BLDC motors

  • A wide range of automation tasks by simple parameterisation, no programming necessary
  • For single axes, line, flat, linear and room linear robots and delta robots
  • No software installation or app required
  • Use with PC, tablet or smart phone
  • Stepper (ST), DC and EC/BLDC motors with up to 21A peak currents and 48V
  • Digital inputs/outputs, analogue inputs, CANopen, ModbusTCP (CANopen Gateway) for connection to master control systems such as Siemens or Beckhoff

The drylin® D1 motor control system and the D2 are identical except for the housing.
61,593.06 RSD/Pc.
1 артикла, од којих је спремно за слање из Немачке:
1 u roku od 24-48 sati
To the product page

drylin® D9- (X) stepper motor output stage

  • Suitable for 86mm motor flange size (NEMA34)
  • Up to 9.8A peak current
  • 5-24V control & 24-48V load voltage
  • Operation mode 1: clock/direction
  • Operation mode 2: D7 & D7-1: jog mode; D7-2& D7-3: loop mode
  • Quiet operation & automatic tuning
15,310.78 RSD/Pc.
4 артикла, од којих је спремно за слање из Немачке:
4 u roku od 24-48 sati
To the product page

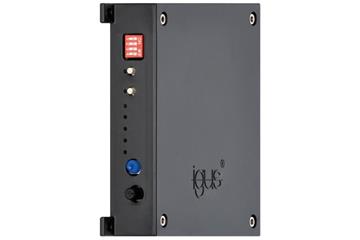

drylin® D3 for direct current motors

  • Simple automation directly using the control system without software and/or PC
  • Operation with limit switch or via power consumption
  • Left/right operation and speed control directly on the housing
  • Option for external switches/joysticks
  • Various modes of operation, such as tip operation and start to finish (semi-automatic)
  • Various adjustable acceleration ramps
  • Power supply via 24V/2.5A

    All relevant documents for dryve D3 can be found in the downloads.
21,574.43 RSD/Pc.
1 артикла, од којих је спремно за слање из Немачке:
1 u roku od 24-48 sati
To the product page

drylin® D3-LM motor control system for DC motors with loop mode

  • Same dimensions as the standard D3
  • Extended functions for "Micro Automation"
  • Individually preprogrammed pendulum movements
  • Individually preprogrammed pause times between movements
Upon request
1 артикла, од којих је спремно за слање из Немачке:
1 za 10 radnih dana
To the product page

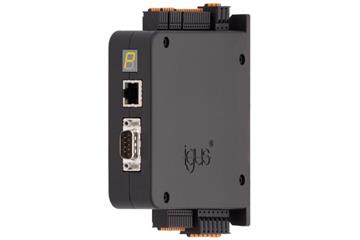

drylin® D1 motor control system for stepper, DC and EC/BLDC motors

  • A wide range of automation tasks by simple parameterisation, no programming necessary
  • For single axes, line, flat, linear and room linear robots and delta robots
  • No software installation or app required
  • Use with PC, tablet or smart phone
  • Stepper (ST), DC and EC/BLDC motors with up to 21A peak currents and 48V
  • Digital inputs/outputs, analogue inputs, CANopen, ModbusTCP (CANopen Gateway) for connection to master control systems such as Siemens or Beckhoff

    TEST BEFORE INVEST - Try out the motor control system with online simulation here before you buy
63,564.29 RSD/Pc.
1 артикла, од којих је спремно за слање из Немачке:
1 u roku od 24-48 sati
To the product page
New

drylin D5 DC motor output stage

drylin D5 DC motor output stage
  • Ready for immediate use. No parameterization or programming necessary
  • Left/right run via digital input
  • Velocities & accelerations via external PWM input signal
  • 12-24V supply voltage
  • 10A nominal current / 30A peak current
  • With housing for industrial use
  • Free pattern programs here
15,867.81 RSD/Pc.
1 артикла, од којих је спремно за слање из Немачке:
1 u roku od 24-48 sati
To the product page
New

drylin D6 DC motor output stage

drylin D6 DC motor output stage
  • Ready for immediate use. No parameterization or programming necessary
  • Left/right run via digital input
  • Velocities & accelerations via external PWM input signal
  • 12-24V supply voltage
  • 10A nominal current / 30A peak current
  • With housing for industrial use
  • Free pattern programs here
14,339.61 RSD/Pc.
1 артикла, од којих је спремно за слање из Немачке:
1 u roku od 24-48 sati
To the product page
