Intercontec Series A / 623

Categories
Plug-in connectors
Binder
FCT Molex
Harting
Hummel
TE Connectivity
Series A / 623
Series B / 923
Series C / 940
Series D / 958
Series 615
Series 915
Series M17 / Signal 617
Series M17 / Power 917
Series S / 623
Network Connectors
Module Connect
Yamaichi
Tools & accessories
Filter
Core Requirements
Fitting
List
Tile

Number of products: 8

Standard connector, series A, M23 signal plugs
Standard connector, series A, M23 signal plugs
  • Material: Zinc die-casting/brass, nickel-plated
  • Pollution degree: 3
  • Protection class: IP 66/67 [plugged]
  • Over-voltage category: III
  • Temperature range: -20 °C to +130 °C
  • Union nut/screw: Brass, nickel-plated
  • Clamping ring material: Brass, nickel-plated
  • Contacts: Brass, gold-plated
  • Seal: FPM/HNBR
  • Insulation body: PA 6.6/PBT, UL 94/V0
  • Contact type: Female crimp
  • Plug design: Signal connector
2,155.82 RSD/Pc.
5 items, thereof ready for shipping from Germany:
5 in 24-48 hours
To the product page

Standard connector, series A, M23 standard feed-through with coupling nut
Standard connector, series A, M23 standard feed-through with coupling nut
  • Material: Zinc die-casting/brass, nickel-plated
  • Pollution degree: 3
  • Protection class: IP 66/67 [plugged]
  • Over-voltage category: III
  • Temperature range: -20 °C to +130 °C
  • Union nut/screw: Brass, nickel-plated
  • Clamping ring material: Brass, nickel-plated
  • Contacts: Brass, gold-plated
  • Seal: FPM/HNBR
  • Insulation body: PA 6.6/PBT, UL 94/V0
  • Contact type: Crimp contact bush, slotted
  • Plug design: Bulkhead connector with union nut
2,009.52 RSD/Pc.
5 items, thereof ready for shipping from Germany:
5 in 24-48 hours
To the product page

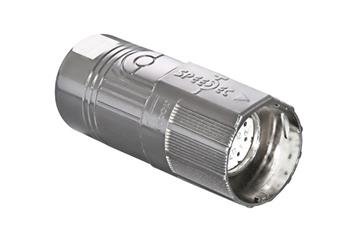

Speedtec connector, series A, M23 signal plugs
Speedtec connector, series A, M23 signal plugs
  • Material: Zinc die-casting/brass, nickel-plated
  • Pollution degree: 3
  • Protection class: IP 66/67 [plugged]
  • Over-voltage category: III
  • Temperature range: -20 °C to +130 °C
  • Union nut/screw: Brass, nickel-plated
  • Clamping ring material: Brass, nickel-plated
  • Contacts: Brass, gold-plated
  • Seal: FPM/HNBR
  • Insulation body: PA 6.6/PBT, UL 94/V0
  • Contact type: Crimp bush, slotted
  • Plug design: Signal connector
  • SpeedTec
2,155.82 RSD/Pc.
5 items, thereof ready for shipping from Germany:
5 in 24-48 hours
To the product page

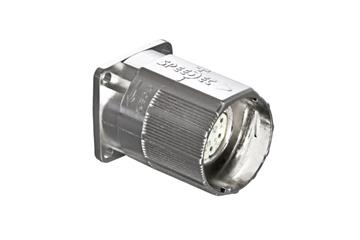

Speedtec connector, series A, M23 standard feed-through with coupling nut
Speedtec connector, series A, M23 standard feed-through with coupling nut
  • Material: Zinc die-casting/brass, nickel-plated
  • Pollution degree: 3
  • Protection class: IP 66/67 [plugged]
  • Over-voltage category: III
  • Temperature range: -20 °C to +130 °C
  • Union nut/screw: Brass, nickel-plated
  • Clamping ring material: Brass, nickel-plated
  • Contacts: Brass, gold-plated
  • Seal: FPM/HNBR
  • Insulation body: PA 6.6/PBT, UL 94/V0
  • Contact type: Crimp contact bush, slotted
  • Plug design: Bulkhead connector with union nut
  • SpeedTec
2,009.52 RSD/Pc.
5 items, thereof ready for shipping from Germany:
5 in 24-48 hours
To the product page

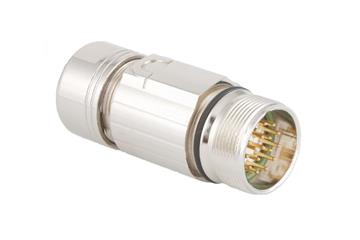

Standard connector, series A, M23 signal coupling
Standard connector, series A, M23 signal coupling
  • Material: Zinc die-casting/brass, nickel-plated
  • Pollution degree: 3
  • Protection class: IP 66/67 [plugged]
  • Over-voltage category: III
  • Temperature range: -20 °C to +130 °C
  • Union nut/screw: Brass, nickel-plated
  • Clamping ring material: Brass, nickel-plated
  • Contacts: Brass, gold-plated
  • Seal: FPM/HNBR
  • Insulation body: PA 6.6/PBT, UL 94/V0
  • Contact type: Crimp pin
  • Plug design: Signal coupling
2,113.06 RSD/Pc.
5 items, thereof ready for shipping from Germany:
5 in 24-48 hours
To the product page

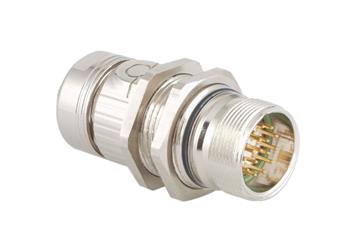

Standard connector, series A, M23 coupling with central attachment
Standard connector, series A, M23 coupling with central attachment
  • Material: Zinc die-casting/brass, nickel-plated
  • Pollution degree: 3
  • Protection class: IP 66/67 [plugged]
  • Over-voltage category: III
  • Temperature range: -20 °C to +130 °C
  • Union nut/screw: Brass, nickel-plated
  • Clamping ring material: Brass, nickel-plated
  • Contacts: Brass, gold-plated
  • Seal: FPM/HNBR
  • Insulation body: PA 6.6/PBT, UL 94/V0
  • Contact type: Crimp pin
  • Plug design: Coupling with central attachment
2,900.74 RSD/Pc.
4 items, thereof ready for shipping from Germany:
4 in 24-48 hours
To the product page

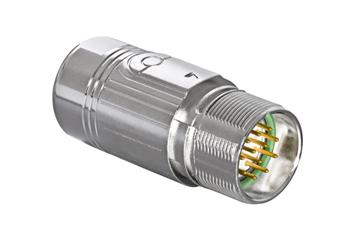

Speedtec connector, series A, M23 signal coupling
Speedtec connector, series A, M23 signal coupling
  • Material: Zinc die-casting/brass, nickel-plated
  • Pollution degree: 3
  • Protection class: IP 66/67 [plugged]
  • Over-voltage category: III
  • Temperature range: -20 °C to +130 °C
  • Union nut/screw: Brass, nickel-plated
  • Clamping ring material: Brass, nickel-plated
  • Contacts: Brass, gold-plated
  • Seal: FPM/HNBR
  • Insulation body: PA 6.6/PBT, UL 94/V0
  • Contact type: Crimp pin
  • Plug design: Signal coupling
  • SpeedTec
2,113.06 RSD/Pc.
5 items, thereof ready for shipping from Germany:
5 in 24-48 hours
To the product page

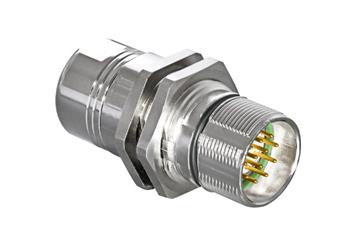

Speedtec connector, series A, M23 coupling with central attachment
Speedtec connector, series A, M23 coupling with central attachment
  • Material: Zinc die-casting/brass, nickel-plated
  • Pollution degree: 3
  • Protection class: IP 66/67 [plugged]
  • Over-voltage category: III
  • Temperature range: -20 °C to +130 °C
  • Union nut/screw: Brass, nickel-plated
  • Clamping ring material: Brass, nickel-plated
  • Contacts: Brass, gold-plated
  • Seal: FPM/HNBR
  • Insulation body: PA 6.6/PBT, UL 94/V0
  • Contact type: Crimp pin
  • Plug design: Coupling with central attachment
  • SpeedTec
2,900.74 RSD/Pc.
5 items, thereof ready for shipping from Germany:
5 in 24-48 hours
To the product page
